Antennas & accessories
In addition to our sensors and modems, we offer a series of antennas high performance and a palette of accessories connectors.

Antennas 868MhZ

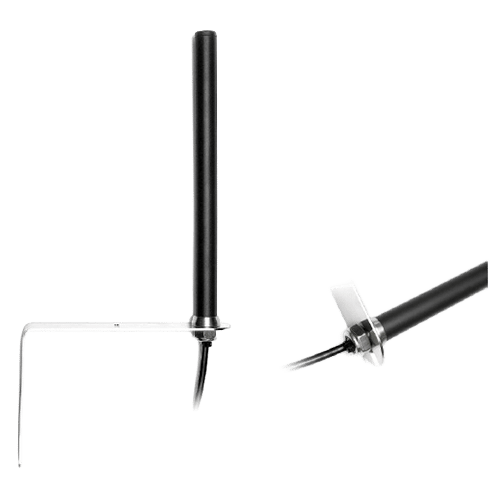

ANT868-WM

Type : Omnidirectional
Usage : Outdoor / Indoor
Gain : 3.2 dBi
Connector : SMA-M
Dimensions : 220 × Ø 16
Mounting : Screw-in

Data sheet

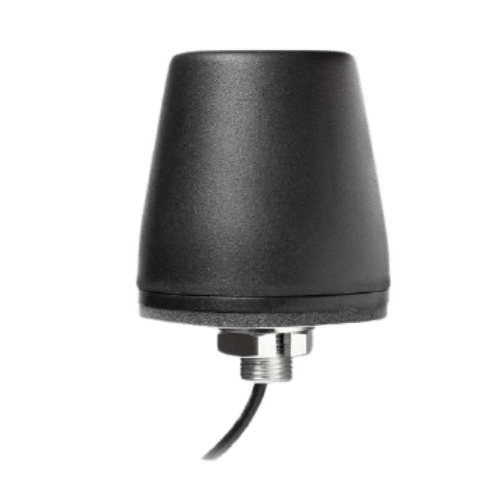

ANT868-GIRO

Type : Omnidirectional
Use : Outdoor
Gain : 0.8 dBi
Connector : SMA-M
Dimensions : Ø 50 x 50.8 mm
Mounting : Drilling ø14mm

Data sheet

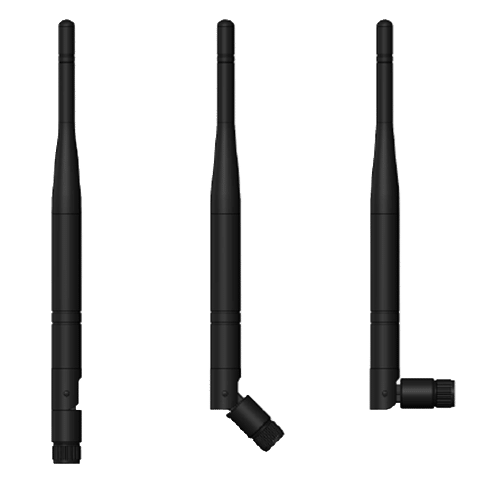

ANT868-AWA

Replaces the 12FSC antenna

Type : Omnidirectional
Usage : Indoor
Gain : 3.2 dBi
Connector : SMA-M
Dimensions : 197 mm × Ø 13 mm
Mounting : Screw-in

Datasheet

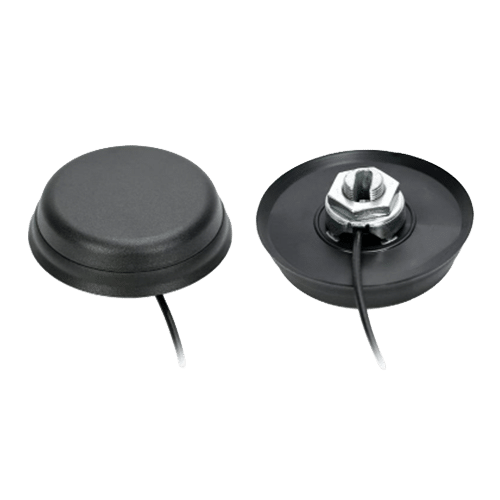

ANT868-LP

Type : Omnidirectional
Use : Outdoor
Gain : 2 dBi
Connector : SMA-M
Dimensions : Ø 77,3 × 15 mm
Mounting : Drilling ø 14,5mm

Data sheet

ANT868-12S3.8

Type : Omnidirectional
Use : Outdoor / Indoor
Gain : 2 dBi
Connector : SMA-M
Dimensions : 16 cm
Mounting : Drilling ø14mm

Data sheet

ANT868-Y12

Type : Directional
Utilisation : Exterior
Gain : 11 dBi
Connecteur : FME-M
Dimensions : 190 x 580 x 60 mm
Mounting : On mast, wall

Data sheet

ANT868-BZ

Type : Omnidirectional
Use : Outdoor
Gain : 4 dBi
Connecteor : N-F
Dimensions : 39 cm
Mounting : On mast, wall

Data sheet

ANT868-Y15

Type : Directional
Use : Outdoor
Gain : 15 dBi
Connector : FME-M
Dimensions : 190 x 995 x 60 mm
Mounting : On mast, wall mounted

Data sheet

ANT868-O3

Type : Omnidirectional
Use : Outdoor
Gain : 3 dBi
Connector : N-M
Dimensions : 200x ø20mm
Mounting : Vertical

Data sheet

ANT868-14-MAR-S2

Type : Omnidirectional
Use : Indoor / Outdoor
Gain : 2 dBi
Connector : SMA-M
Dimensions : 88 x 15 x 35 mm
Mounting : Magnetic fastening

Data sheet

ANTGPS-MA2.5

Type : Omnidirectional
Use : Exterior / Interior
Gain : 28 dBi
Connector : SMA-M
Dimensions : 48,5 x 36,5 x 16,5 mm
Fixing : Adhesive / magnetic

ANT868-O8

Type : Omnidirectional
Use : Outdoor / Indoor
Gain : 8 dBi
Connector : N-F
Dimensions : 48,5 x 36,5 x 16,5 mm
Mounting : Mast
Comes with an NF/NF adapter for connection to a female N connector or a male N connector

Datasheet

ANT868-14S4.0 / ANT868-14S0.5

Type : Omnidirectional
ANT868-14S4.0 : 50 cm cable
ANT868-14S0.5 : 4 m cable
Use : Indoor / Outdoor
Gain : 0 dB
Connector : SMA-M
Dimensions : 95 mm
Mounting : On the ARM series

Datasheet ANT868-14s4.0

Datasheet ANT868-14s0.5

Cables & Connectors

Adapters & Connectors

Different types of connectors and adapters are available.

Coaxial cables

A range of adapted coaxial cables is proposed. The dimensions of the cables and the connectors can be made to measure.

ATIM offers you all the bricks of the solution wireless, a single point of contact bringing you its expertise and advice in the optimal realization of your needs.

Cables, connectors, antennas, batteries, fixing accessories. Our commercial and technical team remains at your disposal for any further information.
