PT1000 temperature probes
-196°C | +200°C
LPWAN

Datalogging
bluetooth
Configuration
7 years +*

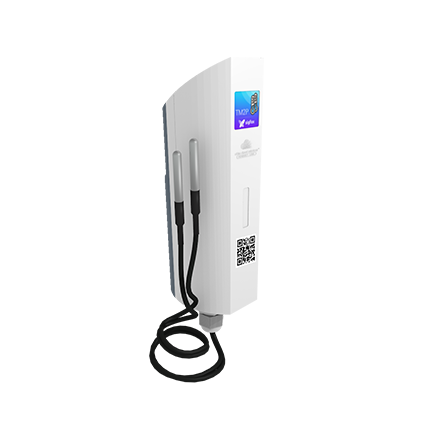

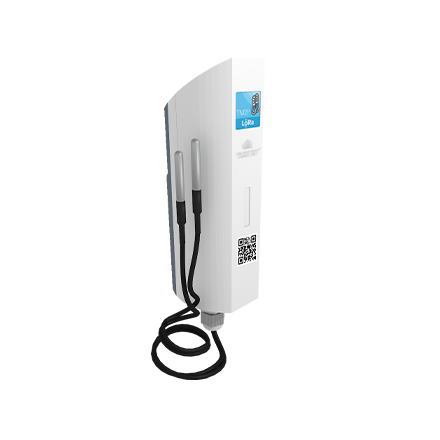

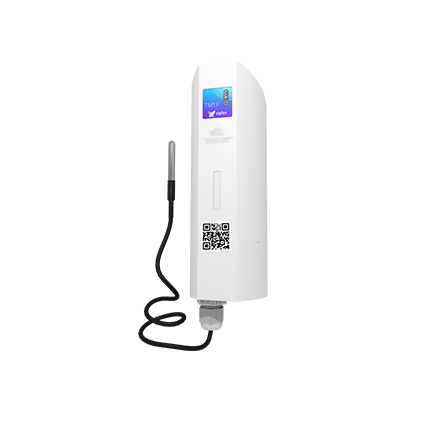

Sensor 1 to 2 probes PT100 / PT1000 board – Sanitary monitoring of DHW networks

The TMxP facilitates the monitoring of up to two remote temperatures of your buildings and energy installations thanks to its two meters long -196°C | +200°C temperature probes. Measurements are regularly transmitted on Sigfox or LoRaWAN networks and its configuration is configurable from the tools of the ATIM suite.

Compatible with the computer and mobile versions of the IoT web platform, data visualization, remote parameterization of the sensor and the configuration of alerts according to predefined thresholds are made possible in a few clicks.

Installation and start-up is done in less than 10 minutes: Plug & Play.

Commonly used in cities, industry and connected buildings, the ACW-TMxP is suitable for many applications such as :

  • Respect of sanitary norms: monitoring the temperature of a hot water network to prevent the appearance of legionellosis
  • Cold chain compliance: cold rooms
  • Monitor vaccine storage temperature for Covid 19
Description
MEASUREMENT RANGES -196°C | +200°C
PRECISION +/- 0.15% between -25°C | -70°C
AUTONOMY* 7 years + with 1 message per hour
BATTERY 2 battery packs (14,4Ah) interchangeable
BOX IP65
MODES Periodic shipments
Datalogging
Data redundancy
CONFIGURATIONS USB
Downlink
Bluetooth (BLE4.2)
PLUG & PLAY Installation in less than 10 minutes

*product battery life depends on several external factors (ambient temperature and humidity, transmission frequency, network quality,…)

Additional information
Technology

,

References

ACW/LW8-TM1P, ACW/LW8-TM1P-CRYO, ACW/LW8-TM2P, ACW/LW8-TM2P-CRYO, ACW/SF8-TM1P, ACW/SF8-TM1P-CRYO, ACW/SF8-TM2P, ACW/SF8-TM2P-CRYO

Documentation

Documentation

ACW-TMxP - EN
